Volkswagen Golf Service & Repair Manual: Assembly overview - three-point seat belt, estate, with belt tensioner

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Pasanger protection / Seat belts / Assembly overview - three-point seat belt, estate, with belt tensioner

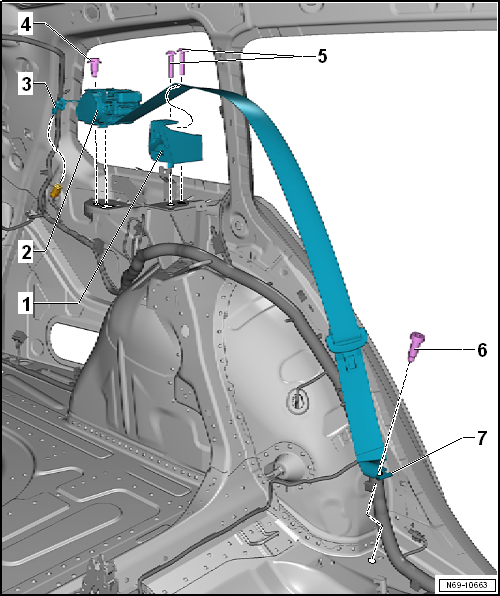

Assembly overview - three-point seat belt, estate, with belt tensioner

1 -  Belt guide
2 -  Belt inertia reel
3 -  Electrical wiring harness
4 -  Bolt
5 -  Bolts
6 -  Bolt for rear outer belt end fitting
7 -  Rear outer belt end fitting
Assembly overview - three-point seat belt, estate, without belt tensioner
1 -  Belt guide Removing and installing → Chapter 2 -  Belt inertia reel Removing and installing → Chapte ...

Assembly overview - rear centre three-point seat belt
1 -  Belt buckle With rear belt switch, front passenger side -E259- Removing and installing → Chapter Always renew after belt tensioner has deploye ...
