Volkswagen Golf Service & Repair Manual: Assembly overview - three-point seat belt, 4-door model, without belt tensioner

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Pasanger protection / Seat belts / Assembly overview - three-point seat belt, 4-door model, without belt tensioner

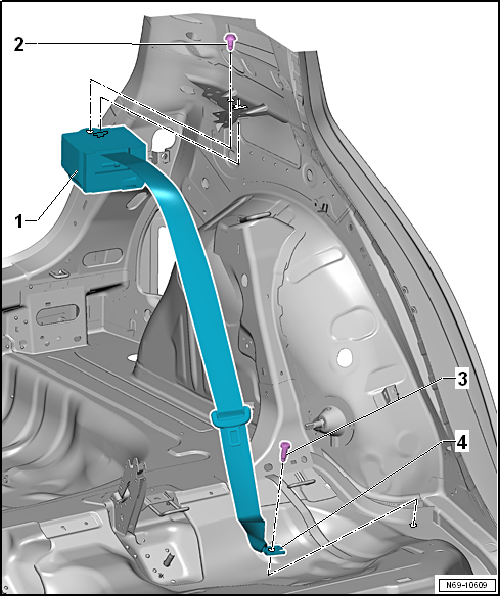

Assembly overview - three-point seat belt, 4-door model, without belt tensioner

1 -  Belt inertia reel



2 -  Bolt
3 -  Bolt
4 -  Rear outer belt end fitting
Assembly overview - three-point seat belt, 2-door model, with belt tensioner
1 -  Belt inertia reel Removing and installing → Chapter 2 -  Electrical wiring harness 3 -  Bolt ...

Assembly overview - three-point seat belt, 4-door model, with belt tensioner
1 -  Belt inertia reel Removing and installing → Chapter 2 -  Electrical wiring harness 3 -  Bolt ...
