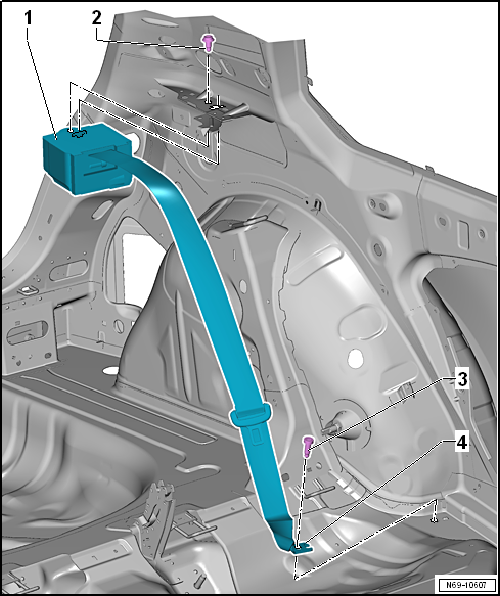

Assembly overview - three-point seat belt, 2-door model, without belt tensioner

1 -  Belt inertia reel
2 -  Bolt
3 -  Bolt
4 -  Rear outer belt end fitting
Assembly overview - front three-point seat belt, 4-door model and estate
1 -  Bolt If removed due to an accident with seat belt fastened, renew bolt. 40 Nm 2 -  Belt end fitting Removing and installi ...

Assembly overview - three-point seat belt, 2-door model, with belt tensioner
1 -  Belt inertia reel Removing and installing → Chapter 2 -  Electrical wiring harness 3 -  Bolt ...
