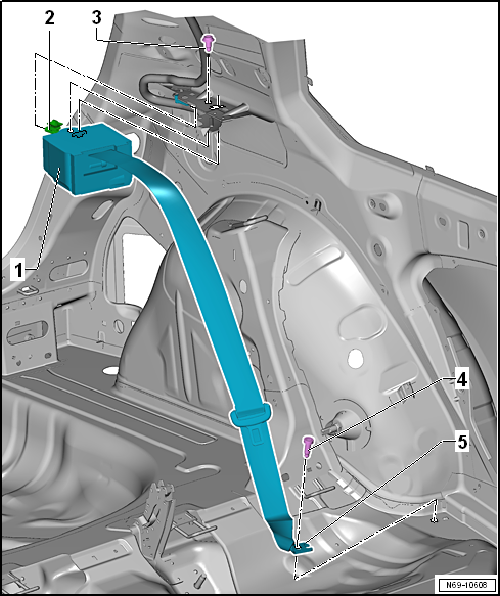

Assembly overview - three-point seat belt, 2-door model, with belt tensioner

1 -  Belt inertia reel
2 -  Electrical wiring harness
3 -  Bolt
4 -  Bolt
5 -  Rear outer belt end fitting
Assembly overview - three-point seat belt, 2-door model, without belt tensioner
1 -  Belt inertia reel Removing and installing → Chapter 2 -  Bolt If removed due to an accident with seat belt fastene ...

Assembly overview - three-point seat belt, 4-door model, without belt tensioner
1 -  Belt inertia reel  Removing and installing → Chapter 2 -  Bolt If removed due to an accident with seat belt f ...
