Volkswagen Golf Service & Repair Manual: Assembly overview - tail lights in vehicle body, with LEDs

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Tail lights / Assembly overview - tail lights in vehicle body, with LEDs

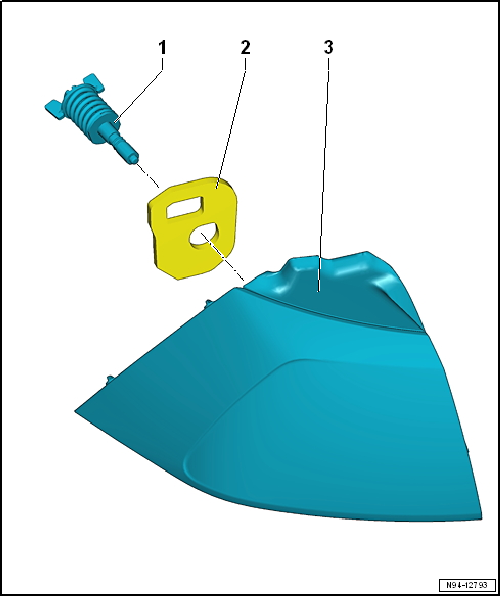

Assembly overview - tail lights in vehicle body, with LEDs

1 -  Securing element
Specified torque: 2 Nm
2 -  Seal
Self-adhesive
Renew if damaged.
3 -  Left tail light -MX3-/right tail light -MX4-
Tail light in body
Removing and installing → Chapter
Assembly overview - tail lights in vehicle body, with bulbs
1 -  Left tail light -MX3-/right tail light -MX4- Tail light in body Removing and installing → Chapter 2 -& ...

Assembly overview - tail lights in rear lid, with bulbs
1 -  Bulb holder For left reversing light bulb -M16-/right reversing light bulb -M17-. Removing and installing → Chapter ...
