Volkswagen Golf Service & Repair Manual: Assembly overview - steering wheel

Assembly overview - steering wheel

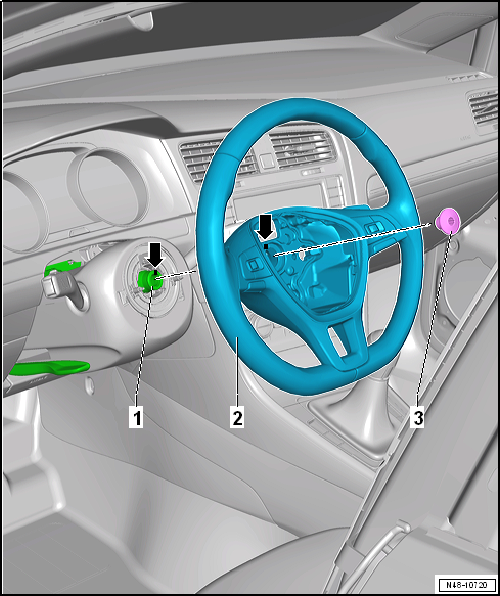

1 -  Steering column
Removing and installing → Chapter
The centre punch marks -arrows- on the steering wheel and the steering column must align when reinstalling. Some steering columns leave the factory with no centre punch mark. On these steering columns a respective centre punch mark must be made before removing the steering wheel → Chapter.
2 -  Steering wheel
Removing and installing → Chapter
Different versions possible. Refer to → Electronic Parts Catalogue
The centre punch marks -arrows- on the steering wheel and the steering column must align when reinstalling. Some steering columns leave the factory with no centre punch mark. On these steering columns a respective centre punch mark must be made before removing the steering wheel → Chapter.
3 -  Bolt
Renew after removing
30 Nm +90°
Steering wheel
...

Removing and installing steering wheel
Special tools and workshop equipment required     Torque wrench -V.A.G 1331- Removin ...
