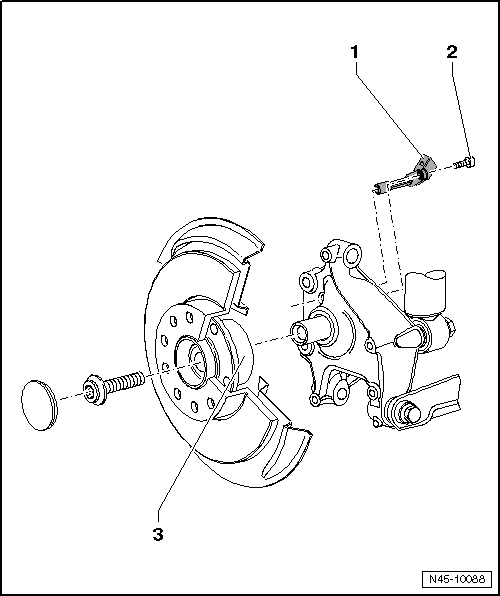

Assembly overview - speed sensor on rear axle, front-wheel drive

1 -  ABS speed sensor
Clean inside surface of hole before inserting sensor
Coat inside surface with high-temperature paste -G 052 112 A3-
Removing and installing → Chapter
2 -  Bolt
8 Nm
3 -  Wheel hub with wheel bearing unit
The ABS sensor ring is integrated in the wheel bearing unit.
Check ABS sensor ring → Chapter
Removing and installing → Running gear, axles, steering; Rep. gr.42
