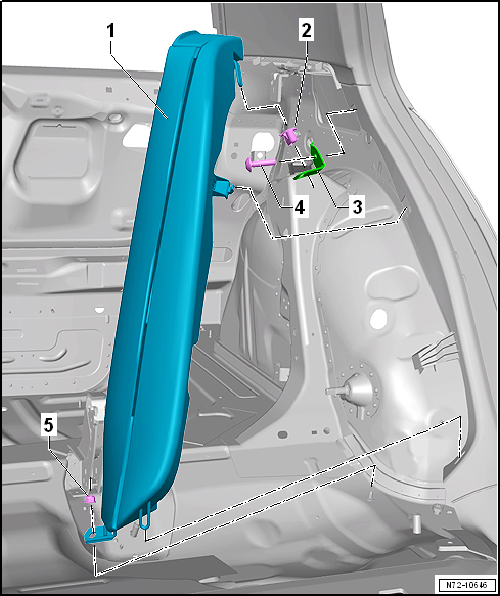

Volkswagen Golf Service & Repair Manual: Assembly overview - side padding
| 1 - | Side padding |
- Allocation → Electronic Parts Catalogue
- Removing and installing → Chapter
| 2 - | Mounting grommet |
- Clipped into side padding bracket.
- Renew if damaged
| 3 - | Side padding bracket |
| 4 - | Bolt |
- 8 Nm
| 5 - | Nut |
- 8 Nm
Assembly overview - centre armrest
1 -
Intermediate padding
Allocation
→ Electronic Parts Catalogue
Removing and installing
→ Chapter
2 -
Centre ...
Assembly overview - remote release mechanism for seat backrest
Note
The illustration shows the remote release mechanism for
seat backrest on the left side. The right-hand side is similar
(mirror image of left-hand ...
