Volkswagen Golf Service & Repair Manual: Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Self- levelling air spring system / Vehicle level senders / Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive

  Note
The vehicle level sender is available as a replacement part only complete with coupling rod and upper and lower retaining plates.

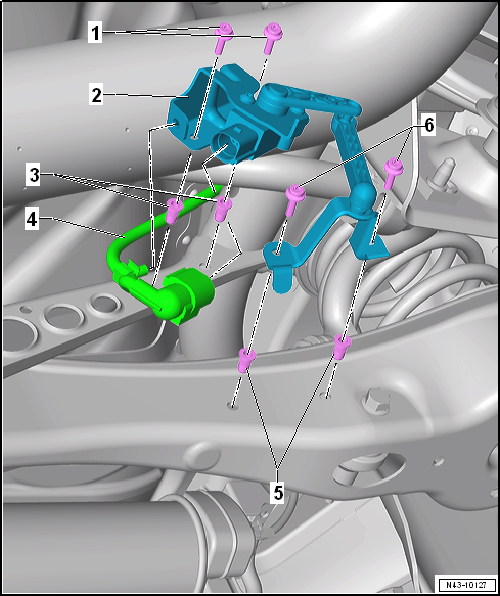

Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive

1 -  Bolt
5 Nm
2 -  Rear vehicle level senders
Complete with attachments
Lever must face outwards
Removing and installing → Chapter
Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.
Carry out basic setting of headlights → Electrical system; Rep. gr.94
3 -  Pop rivet nut
4 -  Electrical connector
5 -  Pop rivet nut
6 -  Bolt
5 Nm
