Volkswagen Golf Service & Repair Manual: Assembly overview - rear shelf support

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Luggage compartment trims / Assembly overview - rear shelf support

Note

The illustration shows the rear shelf support on the left side. The right-hand side is similar (mirror image of left-hand side).

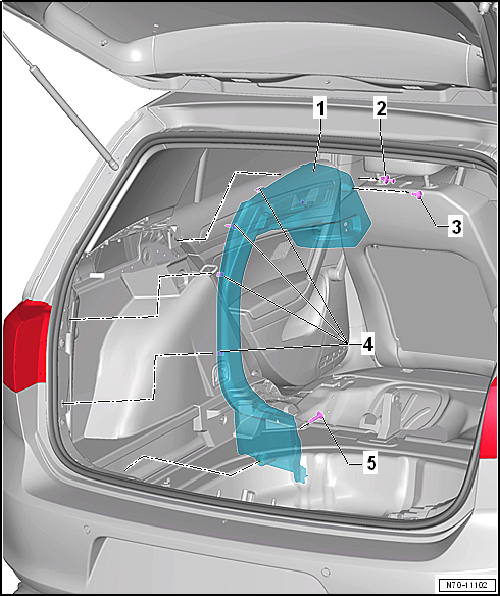

Assembly overview - rear shelf support

1 -	Rear shelf support

Removing and installing → Chapter

2 -

Clip

Renew clip if damaged or deformed

3 -

Bolt

1.5 Nm

4 -	Retaining clip

Insert in rear shelf support.
Remove any retaining clips left in body mountings using removal tool -T40280-
Renew any damaged or deformed retaining clips

5 -

Bolt

8 Nm

Luggage compartment trims

...

Assembly overview - luggage compartment side trim, saloon
