Note

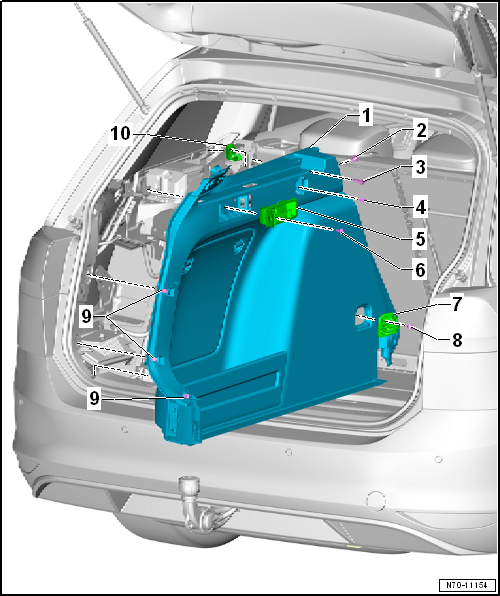

The illustration shows the luggage compartment side trim on the left side. The right-hand side is similar (mirror image of left-hand side).

Assembly overview - luggage compartment side trim, estate

1 -	Luggage compartment side trim

Removing and installing → Chapter

2 -

Clip

Renew clip if damaged or deformed.

3 -

Bolt

1.5 Nm

4 -

Bolt

7 Nm

5 -	Remote backrest release mechanism

Removing and installing → Chapter

6 -

Bolt

7 Nm

7 -	Tie-down ring

Removing and installing → Chapter

8 -

Bolt

8 Nm

9 -	Retaining clip

Insert in luggage compartment side trim
Remove any retaining clips left in body mountings using removal tool -T40280-
Renew any damaged or deformed retaining clips

10 -

Bag hook

Clipped in at rear of luggage compartment side trim -1
