Volkswagen Golf Service & Repair Manual: Assembly overview - locking mechanism

  Note
The assembly overview shows the locking mechanism for left rear seat back rest (1/3). The locking mechanism for the right rear seat backrest (2/3) is similar.

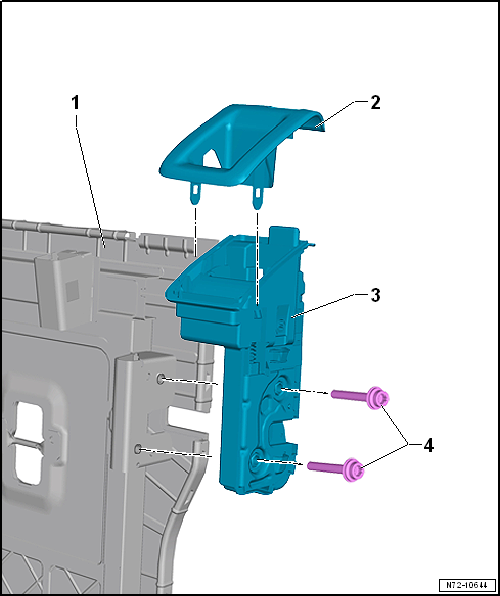

Assembly overview - locking mechanism

1 -  Backrest frame
2 -  Trim for locking mechanism
3 -  Locking mechanism for rear seat backrest
4 -  Bolt
Assembly overview - rear seat backrest
1 -  Rear seat backrest Allocation → Electronic Parts Catalogue Removing and installing → Chapter 2 -  Lock ...

Assembly overview - centre armrest
1 -  Intermediate padding Allocation → Electronic Parts Catalogue Removing and installing → Chapter 2 -  Centre ...
