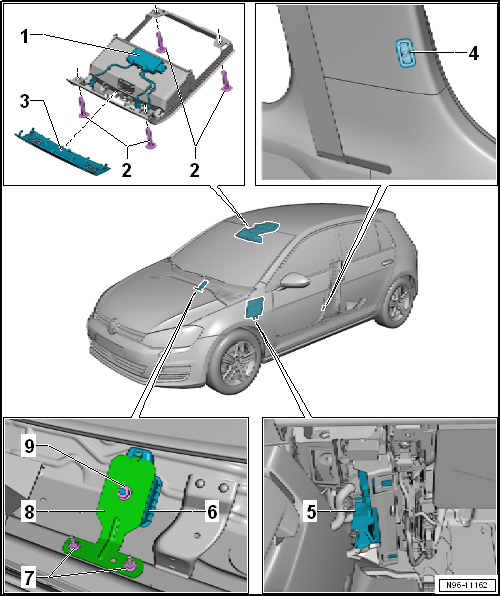

Assembly overview - interior monitoring, LHD vehicles

1 -	Anti-theft alarm system sensor -G578-

Removing and installing → Chapter

Needs parameterisation after renewal → Chapter

2 -

Bolt

Qty. 4

Specified torque: 1 Nm

3 -

Cover

Removing and installing → Chapter

4 -	Button for deactivating interior monitoring and vehicle inclination sensor -E616-

Removing and installing → Chapter

5 -	Onboard supply control unit -J519-

With central locking and anti-theft alarm system aerial -R47-

Overview of fitting locations → Chapter

6 -	Alarm horn -H12-

Removing and installing → Chapter

7 -

Nut

Qty. 2

Specified torque: 9 Nm

8 -

Bracket

Removing and installing → Chapter

9 -

Nut

Specified torque: 6 Nm

Anti-theft alarm system

...
