Volkswagen Golf Service & Repair Manual: Assembly overview - foot rest and floor covering, LHD vehicles

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Interior trims / Assembly overview - foot rest and floor covering, LHD vehicles

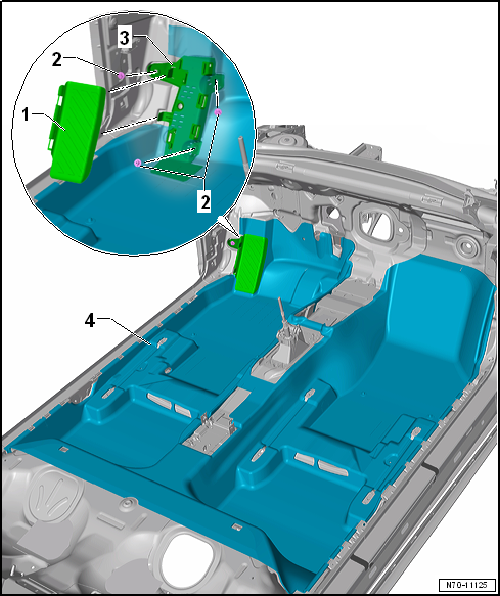

Assembly overview - foot rest and floor covering, LHD vehicles

1 -  Foot rest
2 -  Nut
3 -  Bracket
4 -  Floor covering
Assembly overview - wheel housing trim, estate
  Note The illustration shows the wheel housing trim on the left side. The right-hand side is similar (mirror image of left-hand side). I: Vehicles without side paddin ...

Assembly overview - foot rest and floor covering, RHD vehicles
1 -  Foot rest Removing and installing → Chapter 2 -  Bolt 2 Nm 3 -  Nut Qty. 3 ...
