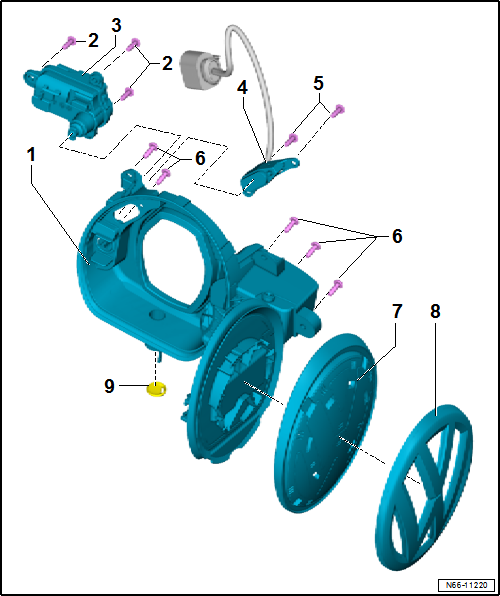

Assembly overview - flap for charging bay

1 -	Flap for charging bay

Removing and installing

2 -

Bolt

For actuator
2 Nm
Qty. 3

3 -

Actuator

Removing and installing

4 -	Immediate charge button -E766-

Removing and installing → Electrical system; Rep. gr.94

5 -

Bolt

For button
2 Nm
Qty. 2

6 -

Bolt

For flap for charging bay
2 Nm
Qty. 5

7 -

Bracket

8 -

Emblem

Removing and installing.

9 -

Valve

For water drainage
