Volkswagen Golf Service & Repair Manual: Assembly overview - coolant temperature sender

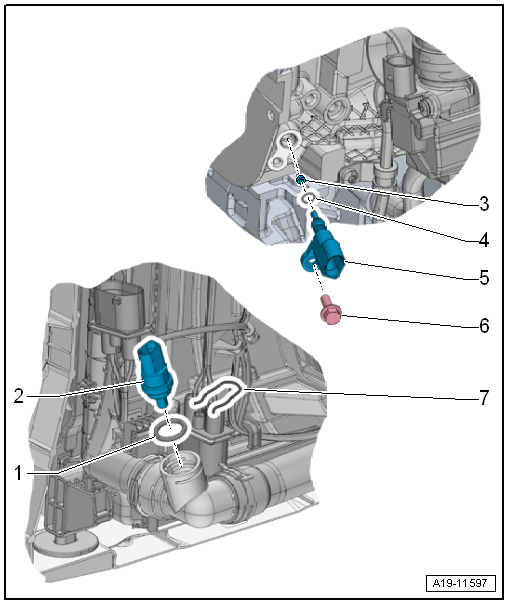

Assembly overview - coolant temperature sender

1 -  O-ring
Renew
2 -  Radiator outlet coolant temperature sender -G83-
Removing and installing → Chapter
3 -  Support ring
4 -  O-ring
Renew
5 -  Coolant temperature sender -G62-
Removing and installing → Chapter
6 -  Bolt
8 Nm
7 -  Retaining clip
Check for secure seating.
