Volkswagen Golf Service & Repair Manual: Assembly overview - bumper cover
Note| Minor differences may be encountered in respect of bumper cover, depending on vehicle model. |

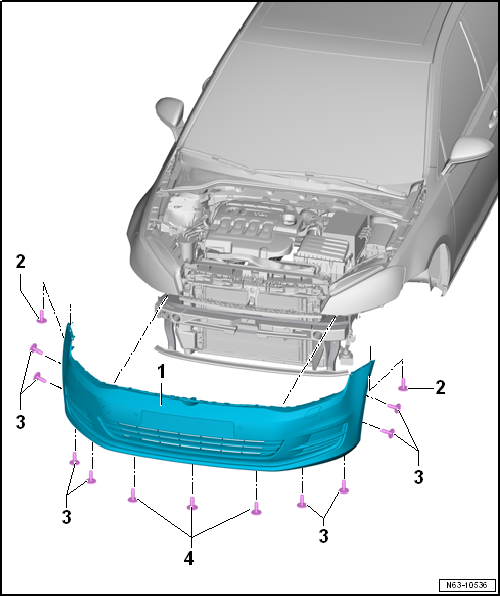

| 1 - | Bumper cover |
- Material PP/EPDM
- Removing and installing → Chapter.
| 2 - | Bolt |
- Left and right
- Points upwards
- 2.0 Nm
| 3 - | Bolt |
- Qty. 5 on each side
- Bolted to wheel housing liner
- 2.0 Nm
| 4 - | Bolt |
- Qty. 3
- Bolted to lock carrier.
- 2.0 Nm
Front bumper
...
Assembly overview - impact bar
1 -
Impact bar
2 -
Guide bracket
Left and right
3 -
Hexagon nut
Qty. 2 on each side
2.0 Nm
...
