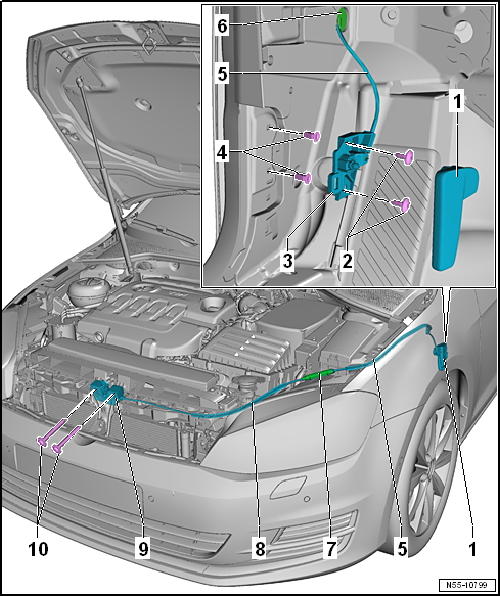

Assembly overview - Bowden cable

1 -	Release lever

Removing and installing → Chapter

2 -

Bolt

Qty. 2
1.5 Nm

3 -	Mounting bracket

4 -	Expanding nut

Qty. 2

5 -	Bowden cable

From mounting bracket -3- to clutch -7-

6 -

Grommet

7 -

Clutch

8 -	Bowden cable

From clutch -7- to bonnet lock -9-

9 -	Bonnet lock

Removing and installing → Chapter

10 -

Bolt

Qty. 2
12 Nm

Assembly overview - bonnet
