Volkswagen Golf Service & Repair Manual: Assembly overview - bench seat / individual seats

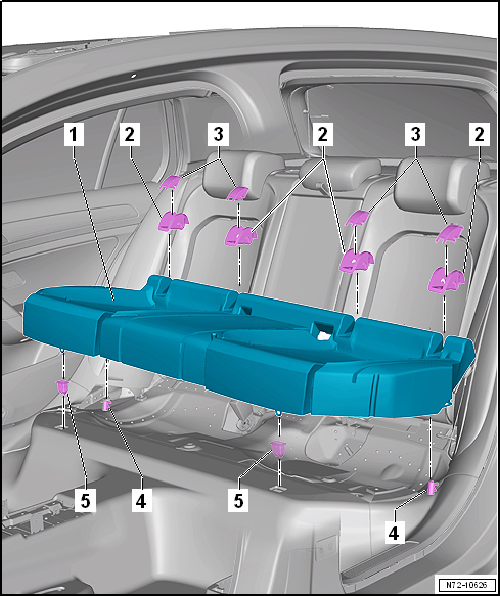

| 1 - | Rear bench seat |
- Allocation → Electronic Parts Catalogue
- Removing and installing → Chapter
| 2 - | Guide |
- For ISOFIX child seat anchor
- Qty. 4
- Removing and installing → Chapter
| 3 - | Lid |
- For ISOFIX child seat anchor
- Qty. 4
- Removing and installing → Chapter
| 4 - | Arrester |
- Qty. 2
- Engages in wire frame of rear bench seat
| 5 - | Mounting grommet |
- Qty. 2
- For securing rear bench seat.
- Clipped into underbody
- Renew if damaged.
