Volkswagen Golf Service & Repair Manual: Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Rear suspension, drive shaft / Anti-roll bar / Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive

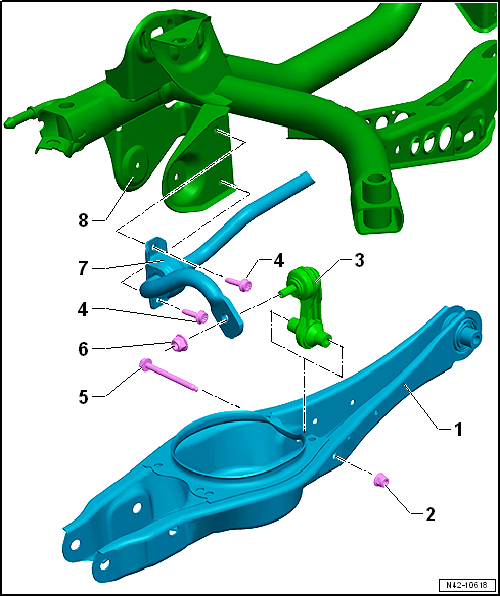

Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive

1 -  Lower transverse link
2 -  Nut
Renew after removing
20 Nm +180°
3 -  Coupling rod
Removing and installing → Chapter
4 -  Bolt
Tighten evenly.
Renew after removing
20 Nm +90°
5 -  Bolt
Renew after removing
6 -  Nut
When tightening, counterhold at multi-point socket of coupling rod
55 Nm
7 -  Anti-roll bar
With rubber bushes
Removing and installing → Chapter
8 -  Subframe
Anti-roll bar
...

Assembly overview - anti-roll bar, multi-link suspension, four-wheel drive
1 -  Lower transverse link 2 -  Nut Renew after removing 20 Nm +180° 3 -  Coupling ...
