Volkswagen Golf Service & Repair Manual: Anti-corrosion treatment

Volkswagen Golf Service & Repair Manual / Electrical system, general information / Wiring / Contact surface cleaning set -VAS 6410- / Anti-corrosion treatment

Caution

Missing anti-corrosion treatment results in damage to the onboard supply.

Note

All threaded connections must be tightened to specified torque.

Always use hose supplied with anticorrosive agent tin.

Use protection wax for cold area.

Use cavity sealing agent for warm area.

The sealing agent independently reaches the respective points through capillary action.

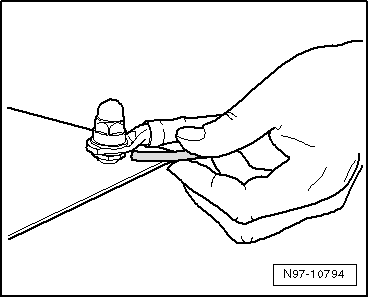

–	Hold injector below ring terminal and spray pin all around.

Anti-corrosion treatment

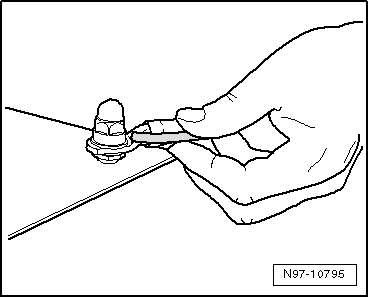

–	Hold injector above ring terminal and spray pin and wiring eye all around.

Anti-corrosion treatment
