Volkswagen Golf Service & Repair Manual: Adjusting camber on rear axle, multi-link suspension

Special tools and workshop equipment required

Torque wrench -V.A.G 1332-


Adjusting camber on rear axle, multi-link suspension

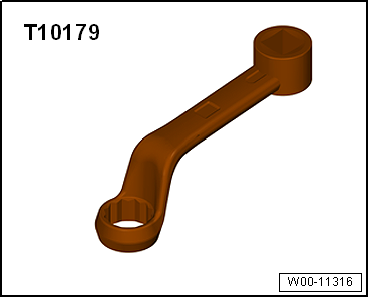

Tool insert 18 mm -T10179-


Adjusting camber on rear axle, multi-link suspension

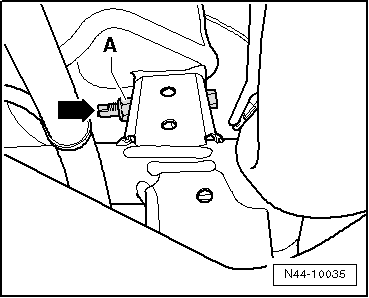

–  Loosen upper transverse link nut -A- on subframe.
–  Adjust camber by turning hexagon head of eccentric bolt -arrow-.
  Note
The maximum adjustment range is 90° to the left or right of centre.


Adjusting camber on rear axle, multi-link suspension

–  Tighten nut -A-.


Adjusting camber on rear axle, multi-link suspension

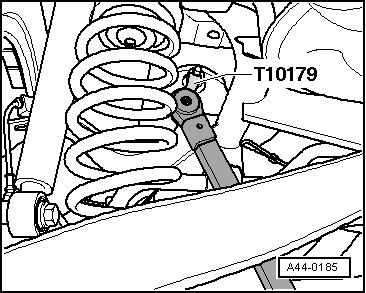

–  To do so, use insert tool 18 mm -T10179-.
On use of insert tool 18 mm -T10179-, tighten nuts to 80 Nm.
–  Check camber value again after nut -A- has been tightened.
–  Check camber value again after tightening nut -A- → Chapter „Specified values for wheel alignment“.
Specified torques
→ Chapter „Assembly overview - transverse link“


Adjusting camber on rear axle, multi-link suspension

Adjusting toe on rear axle, torsion beam axle

Toe cannot be adjusted.
If the measurements are outside the permitted tolerances, check the axle beam for damage and renew if necessary.
