Volkswagen Golf Service & Repair Manual: 1-pack test paint

Designation:
1-pack test paint -LLS MAX 005-, black
Issued 10.2008
Product description
The 1-pack test paint -LLS MAX 005- is a one-pack product based on special NC resin combinations.
Properties:
Easy to handle (one-pack product).
Fast-drying
High coverage.
Good hiding power.
Evenly distributed application.
Easy to sand.
Technical data sheet
Application
Detection of surface roughness in primer and surfacer substrates.
Substrate
Suitable substrates:
All primers, unsanded.
All surfacers, unsanded.

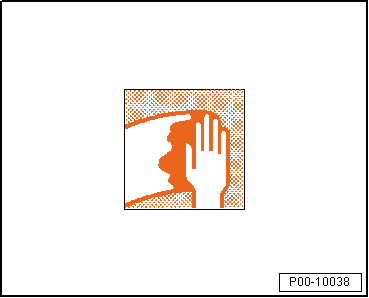

Substrate pre-treatment:
–  Thoroughly clean with silicone remover -LLS MAX 007- or slow-drying silicone remover -LLS MAX 0008-.


1-pack test paintP00-10038

Application
Protective garments and equipment in accordance with work safety regulations must be worn.
Protective gloves (e.g. latex or nitrile).
Respirator mask, e.g. of type A2/P2.
Application:

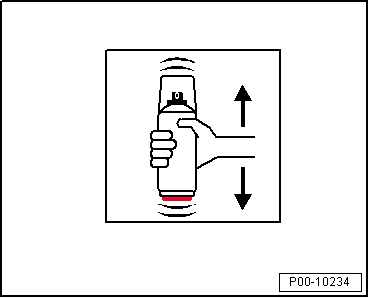

–  Shake can well for at least 2 minutes, then perform one brief “test spray”.


1-pack test paint

Method of application: “spray”.
–  Apply in one misted, thin, evenly distributed spray pass.
–  Recommended dry film thickness is 15 µm.
Spraying distance:
–  Maintain a distance of 20-25 cm.
  Note
If spray work must be interrupted, ensure that the nozzle is cleared to avoid clogging by inverting the can and spraying until the valve is empty.


1-pack test paint

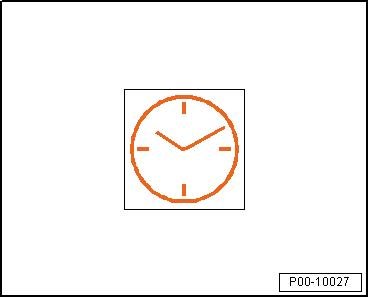

Drying
Flash-off time is 10 minutes at an ambient temperature of +20 °C. This product is suitable for infrared drying.
  Caution
Protective garments and equipment in accordance with work safety regulations must be worn.
Observe safety information sheets as well as warnings on the label of the spray can.
Shake again briefly before spraying each coat.
After fully emptying the spray can, dispose of as recycling material
Data


1-pack test paint

Solids content Approx. 16 %.
Coverage approx. 0.5 mІ per spray can for dry film thickness of 30 to 40 μm.
Note This product is for the professional painting of vehicles only.
VOC value The EU limit value for this product (product category IIB.b) in ready-to-spray form is max. 650 to 693 g/l of volatile organic compounds. The VOC content of this product in ready-to-spray form is max. 260 to 277 g per spray can.


Storage
The guaranteed shelf life is 60 months from date of production. May be used until the date stated on the label at latest if stored in sealed original containers at +20 °C.


1-pack test paint
